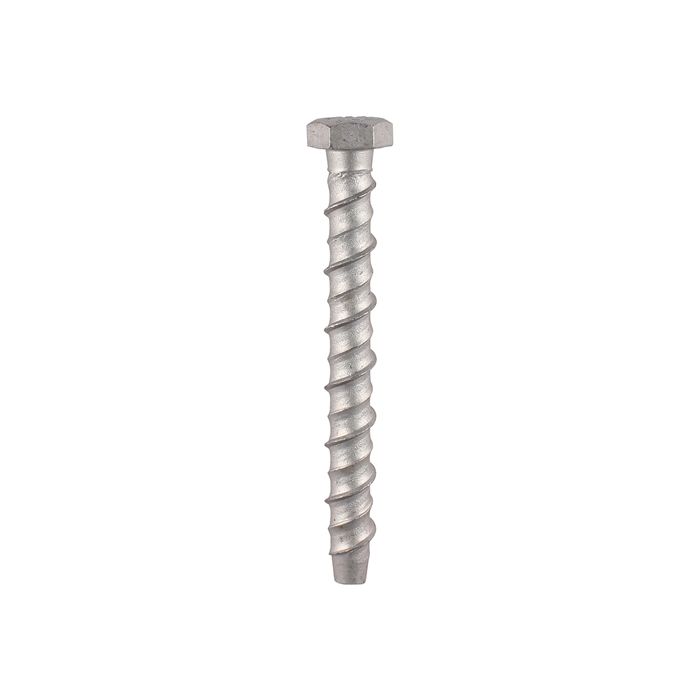

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
TIMCO micro plating (Nano) technology gives a higher resistance to corrosion
High-Low parallel threads for ease of insertion and high pull-out values
Removable & adjustable non-expansion through fixing
Unique concave thread configuration
All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
TIMCO micro plating (Nano) technology gives a higher resistance to corrosion
High-Low parallel threads for ease of insertion and high pull-out values
Removable & adjustable non-expansion through fixing
Unique concave thread configuration
All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Socket Size mm : 15
Designed to replace traditional expansion anchors
Fixture Hole Diameter mm : 10.0
Min Drill Hole Depth mm : 55
Features
More Information
Manufacturer Name
T.I. MIDWOOD & CO LIMITED
MPN
MF8100B
Length mm
100mm
Product Colour
Silver
Product Net Weight kg
0.91
Manufacturer Bullet 1
TIMCO micro plating (Nano) technology gives a higher resistance to corrosion
Manufacturer Bullet 2
High-Low parallel threads for ease of insertion and high pull-out values
Manufacturer Bullet 3
Removable & adjustable non-expansion through fixing
Manufacturer Bullet 4
Unique concave thread configuration
Product Size
8.0 x 100
Manufacturer Bullet 5
All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Packaged Length mm
264mm
Manufacturer Bullet 6
Socket Size mm : 15
Packaged Width mm
144mm
Packaged Height mm
50mm
Carton Package Length mm
264mm
Carton Package Heigh mm
50mm
Manufacturer Bullet 7
Designed to replace traditional expansion anchors
Carton Packaging Material
TIMbag
Pallet Cage Width mm
150mm
Manufacturer Bullet 8
Fixture Hole Diameter mm : 10.0
Pallet Cage Length mm
274mm
Pallet Cage Height mm
166mm
Manufacturer Bullet 9
Min Drill Hole Depth mm : 55
Pallet Cage Weight kg
4.76
Pallet Cage Barcode
5055331859532
Thickness
8 mm
Length
100 mm
Brand
Timco
Pack qty
20
Material
Carbon Steel
